技術(shù)參數(shù)Technical parmeters |

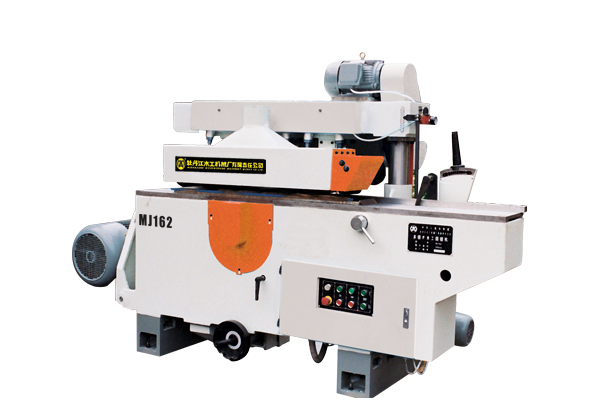

MJ162 |
|
鋸片直徑Dia.of saw blabe |
Φ255mm |
|
最大鋸切厚度Max.thickness of sawing |
60mm |
|
最小鋸切厚度Min.thickness of sawing |
10mm |
|
鋸切寬度范圍Width range of sawing |
10-180mm |
|
最小加工長度Min.length of sawing |
200mm |
|
主軸電機功率Main motor power |
22kw |
|
主軸轉(zhuǎn)速Rotate speed of sawing spindle |
4500r/min |
|
送料電機功率Feeding motor power |
2.2kw |
|
送料速度Feeding speed |
6,8,12m/min |
|
升降電機功率Lifting motor power |
0.55kw |
|
機床外形尺寸（長*寬*高）Overalldimensions(L*W*H) |
2440*940*1650mm |
|
重量Weight |
1740kg |
