技術參數Technical parmeters |

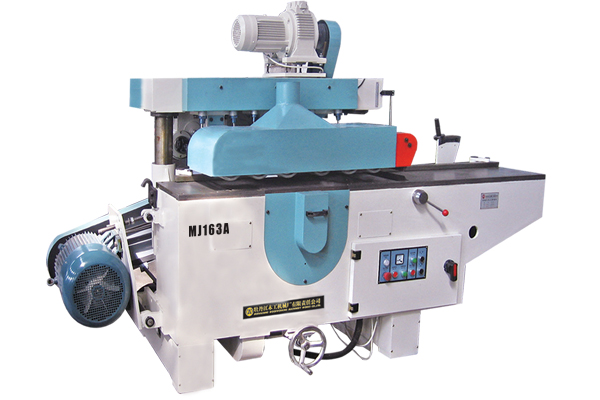

MJ163A |
|
鋸片直徑Dia.of saw blabe |
Φ355mm |
|
最大鋸切厚度Max.thickness of sawing |
100mm |
|
最小鋸切厚度Min.thickness of sawing |
15mm |
|
鋸切寬度范圍Width range of sawing |
15-300mm |
|
最小加工長度Min.length of sawing |
370mm |
|
主軸電機功率Main motor power |
22(37)kw |
|
主軸轉速Rotate speed of sawing spindle |
3170r/min |
|
送料電機功率Feeding motor power |
2.2kw |
|
送料速度Feeding speed |
6-22m/min |
|
升降電機功率Lifting motor power |
0.55kw |
|
機床外形尺寸（長*寬*高）Overalldimensions(L*W*H) |
2830*1130*1770mm |
|
重量Weight |
1990kg |
