技術參數Technical parmeters |

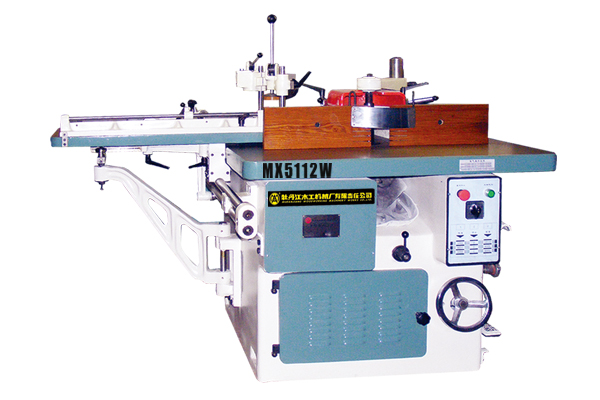

MX5112W |
|
最大銑削高度Max.height of milling |
120mm |
|
工作臺面尺寸Size of owrktable |
1120*900mm |
|
加工零件最大榫長Max.tenon length of work pieces |
100mm |
|
圓頭切削直徑Dia.of round cutter block |
128mm |
|
主軸轉速Rotate speed of main spindle |
3000 4000 5000
6000 8000 10000r/min |
|
主軸最大升降高度Max.vertical movement of main spindle |
100mm |
|
主軸回轉角度Lnclination angle range of main apindle |
0°~45° |
|
活動工作臺最大行程Max.storke of movable worktable |
680mm |
|
主軸皮帶輪直徑Pulley diameters of main spindle |
74；88；110mm |
|
電動機功率Power of motor |
3/4kw |
|
電動機轉速Rotate of motor |
1450/2890r/min |
|
電動機皮帶輪直徑Pulley diameters of motor |
247；237；220mm |
|
機床外形尺寸Overall dimensions(L*W*H) |
2260*1625*1415mm |
|
機床重量Weight |
1110kg |
