技術(shù)參數(shù)Technical parmeters |

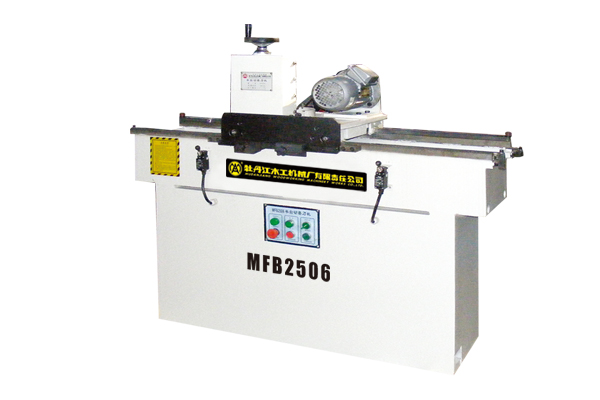

MFB2506 |
|
刀磨刀具最大長度Max.grinding length of straight knife |
640mm |
|
工作臺(長*寬)Size of worktable |
712*130mm |
|
杯型砂輪Size of cup-type grinding wheel |
WA60#K.V.B150*15*32 |
|
磨頭主軸轉(zhuǎn)動角度Rotate speed of main spindle of grinding head |
0°~5° |
|
磨頭主軸轉(zhuǎn)動Rotate speed of main spindle of grinding head |
2850r/min |
|
砂輪進給Feed of grindingwheel |
0.015mm/每格 |
|
磨頭行走速度Travel speed of grind head |
8m/min |
|
磨頭電機功率Power of travel speed |
0.75kw(YM71S2) |
|
行走電機功率Power of travel speed |
0.55kw(YP801-4) |
|
機床外形尺寸Overall dimensions(L*W*H) |
1400*660*1363mm |
|
重量Weightv |
480kg |
