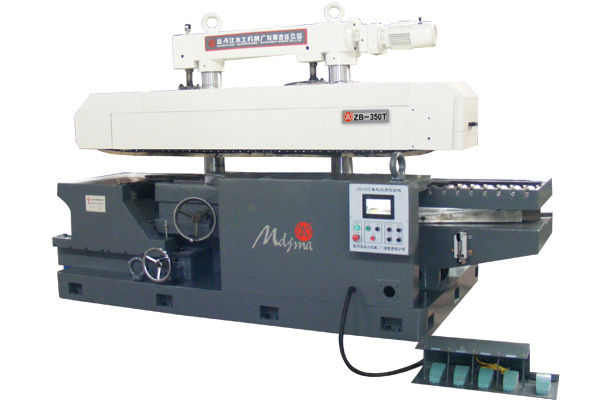

縱向刨切機
本機是我公司科技人員考察吸收國內外先進技術，獨家開發研制的新型縱向刨切機。該機運轉 平穩操作方便，刨切單板效果好，不背裂，適用各種材質的刨切，具有安全、高效、省時的特點。
本機前后工作臺由滾動輥支撐，可減輕進料摩擦力、提高輸送工件速度、減少送料環形帶損。
This machine is a new model horizontal veneer slicer developed exclusively by the engineers
of our company by the means of inspecting and absorbing the advanced technology of home and abroad.
The machine runs smoothly, operates easily, makes the veneer have good quality and not have any
craze. This machine is suitable to slice all kinds of wood and high speed, high capacity, high
efficiency and saving time are its feature.
The machine uses the rolling roller as its worktable to support the flitch and this roller
worktable can reduce the feeding friction force, improve the feeding speed of flitch and reduce
the frictional wear of feeding ring-shaped rubber belt
|
技術參數Technical parmeters |
ZB350T |
|
加工木材最大厚度Max.thickness of slicing flitch |
350mm |
|
加工木材最大寬度Max.width of sllicing flitch |
350mm |
|
刨切單板厚度Thickness of slicing weneer |
0.2-6mm |
|
送料速度Feed speed |
60m/min |
|
主電機Main motor |
30kw |
|
送給電機Feed drive motor |
0.75kw |
|
機床外形尺寸Overall dimensions(L*W*H) |
3855*2140*2265mm |
|
重量Weight |
120000kg | |
