技術參數Technical parmeters |

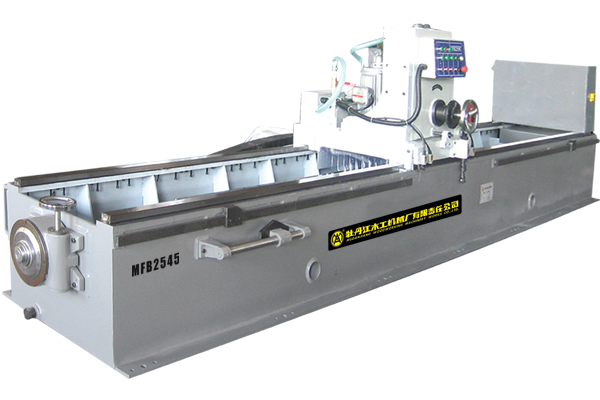

MFB2545 |
|
磨削最大長度Max.lenght of grinding |
4500mm |
|
工作臺寬度Width of worktable |
200mm |
|
電磁吸盤旋轉角度Swivel angle of magetic table |
90° -0 -90 |
|
磨頭行走速度Reciprocating speeds of gninding head |
7-16m/min |
|
磨削最小進給量Min.grinding capacity(mm/cycle) |
0.01mm/往復一次 |
|
工作允許高度pemnitted height of working |
110mm |
|
磨頭傾斜角度Inclined angle of grinding head |
0°-15° |
|
磨頭電機Grinding head motor |
N=7.5kw n=1440rpm |
|
砂輪（外徑*高*內孔）Ginding wheel (dia-hold*height) |
250*100*150mm |
|
液壓站電機
Motor of hyaraulic unit |
Y100L-6B5
N=3.0kw n=940rpm |
|
冷卻電泵Cooling motor |
JCB-45 N=150w |
|
油壓馬達Hydraulic motor |
BM30-250 |
|
機床外形尺寸Overall dimensions(L*W*H) |
7060*1520*1450mm |
|
重量Weight |
4000kg |
