技術參數Technical parmeters
|

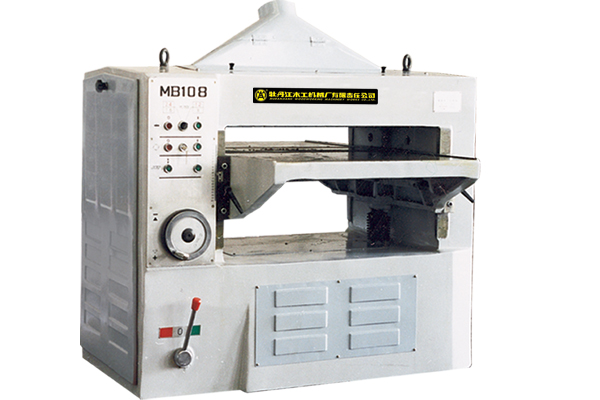

MB108
|
|
最大刨削寬度 Max.width of planing workpieces
|
800mm
|
|
最大刨削厚度Max.thickness of planing workpieces
|
200mm
|
|
最小刨削厚度Min.thickness of planing workpieces
|
10mm
|
|
最小刨削長度Max.thickness planing workpieces
|
300mm
|
|
每次最大刨削量 Max.Capacity of planing once wor kpiece
|
10mm
|
|
送料速度Feed speed
|
8,12,16,24m/min
|
|
最大毛料厚度差（同時送料）Max.difference of thickness between wood pieces
|
2mm
|
|
刀軸切削直徑Cutting diameter of cutter
|
Φ125mm
|
|
刀軸轉速Revolution speed of top &bottom cutters
|
5000rpm
|
|
刀軸切削速度Cutting speed of cutter
|
30.5m/s
|
|
工作臺升降速度Lifting speed of work table
|
135rpm
|
|
電動機功率Power of motors
|
|
|
主軸電機Motor of main spindle
|
7.5kw
|
|
送料電機For feed unit
|
1.5/2.2kw
|
|
升降電機Fox lifting mechanism of feed unit
|
370w
|
|
機床外形尺寸（長*寬*高）Overalldimensions(L*W*H)
|
1370*1515*1470mm
|
|
重量Weight
|
1410kg
|
