技術參數Technical parmeters |

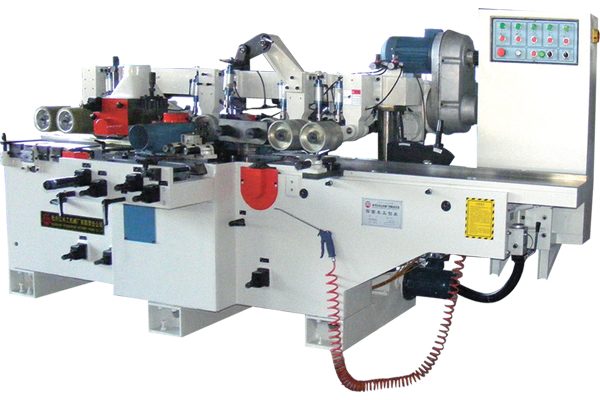

MB516 |
|
加工工件寬度 Size of moulding Width |
20~160mm |
|
加工工件厚度 Size of moulding Thickness |
10~80mm |
|
進料速度（無級調速）Feeding speed (stepless) |
7~30m/min |
|
進料臺板外伸長度 Front worktable Length |
1495mm |
|
進料臺板上下調節范圍 Setting movement of front worktable |
5mm |
|
進料導板調節范圍 Setting movement of right fence on frontworktable |
8mm |
|
出料臺板調節范圍（加墊片）Setting movement of discharging worktael(adding spacing piecess) |
0.3~0.5mm |
|
第一下水平刀軸 |
轉速 1st bottom horizontai cutting spindle Rotate speed |
6800r/min |
|
主軸直徑 Dia. Of cutting spindle |
Φ40mm |
|
刀具旋轉直徑 Dia of cutter blocks |
Φ125mm |
|
刀軸軸向調節范圍Axial adjustnent of cutting spindies |
20mm |
|
電機功率Motor power |
4kw |
|
立刨刀軸 |
轉速 1st&2nd horizontai cutting spindles and bottom cutting spiadle Rotate speed |
6800r/min |
|
主軸直徑 Dia. Of cutting spindle |
Φ40mm |
|
刀具最小旋轉直徑Max.dia of cutter blocks |
Φ125mm |
|
刀具最大旋轉直徑Max.dia of cutter blocks |
Φ160mm |
|
裝刀最大長度Max.lengthof cutter blocks |
90 |
|
刀軸軸向調節范圍Axial adjustnent of cutting spindler |
20 |
|
電機功率Motor power |
2*4kw |
|
第一、第二上刀軸第二下水平刀軸 |
轉速 1st&2nd horizontai cutting spindles and bottom cutting spiadle Rotate speed |
6800r/min |
|
主軸直徑 Dia. Of cutting spindle |
Φ40mm |
|
刀具旋轉直徑 Dia of cutter blocks |
Φ125~Φ160mm |
|
裝刀最大長度Max.lengthof cutter blocks |
170mm |
|
刀軸軸向調節范圍Axial adjustnent of cutting spindles |
20mm |
|
電機功率 |
上刀軸 Motor power top cutting spindles |
5.5kw |
|
第二下刀軸 2nd bottom cutting spindles |
4kw |
|
鋼輪 外徑/內徑 Feed pressure wheel;Stee wheel(OD/ID) |
Φ140/Φ35mm |
|
上橡膠輪 外徑/內徑Feed pressure wheel;Stee wheel(OD/ID) |
Φ140/Φ35mm |
|
進料電機功率 feed motor power |
2.2kw |
|
進料梁升降電機功率 Motor power for cross frame lifting |
0.75kw |
|
排屑管外徑 Outside diameter of dust vents |
Φ120mm |
|
電機總?cè)萘?/SPAN> Total power |
24.45kw |
|
使用氣壓 Pressure in pneumatic system |
0.5~0.8MPa |
|
機床外形尺寸（長*寬*高）Overalldimensions(L*W*H) |
3181*1495*1598mm |
|
重量 Weight |
2620(kg) |
