技術參數Technical parmeters
|

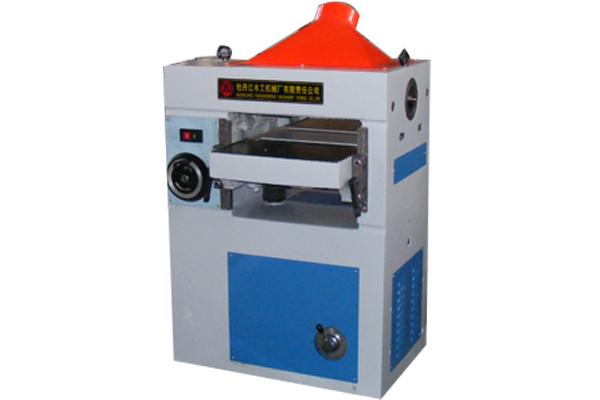

MB104F
|
|
最大刨削寬度 Max.width of planing workpieces
|
400mm
|
|
最大刨削厚度Max.thickness of planing workpieces
|
120mm
|
|
最小刨削厚度Min.thickness of planing workpieces
|
10mm
|
|
最小刨削長度Max.thickness planing workpieces
|
210mm
|
|
每次最大刨削量 Max.Capacity of planing once wor kpiece
|
5mm
|
|
送料速度Feed speed
|
8-16m/min
|
|
最大毛料厚度差（同時送料）Max.difference of thickness between wood pieces
|
2.5mm
|
|
刀軸切削直徑Cutting diameter of cutter
|
Φ90mm
|
|
刀軸轉速Revolution speed of top &bottom cutters
|
6000r/min
|
|
刀軸切削速度Cutting speed of cutter
|
28m/s
|
|
工作臺升降速度Lifting speed of work table
|
|
|
電動機功率Power of motors
|
4kw
|
|
主軸電機Motor of main spindle
|
|
|
送料電機For feed unit
|
|
|
升降電機Fox lifting mechanism of feed unit
|
|
|
機床外形尺寸（長*寬*高）Overalldimensions(L*W*H)
|
740*776*1185mm
|
|
重量Weight
|
540kg
|
