技術參數Technical parmeters |

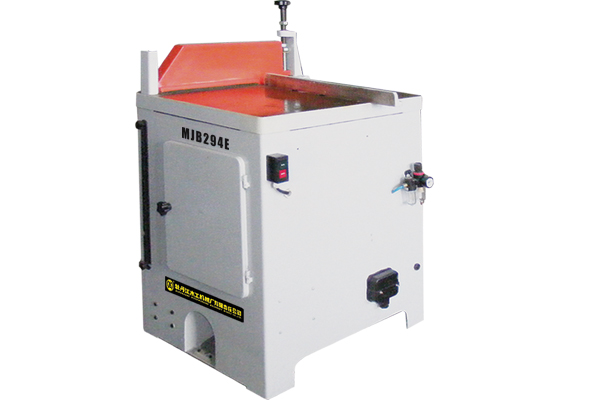

MJB294E |
|
鋸片直徑Dia.ofsaw blade |
450mm |
|
最大鋸切厚度Max.thickness of sawing |
100mm |
|
最大鋸切厚度Min.thickness of sawing |
10mm |
|
鋸軸轉速Rotate speed of sawingspindle |
3600r/min |
|
工作臺尺寸Size of wosktable |
663*690mm |
|
氣動系統(tǒng)壓力Compressed air pressure |
0.6Mpa |
|
電機功率Motor power |
4.0kw |
|
機床外形尺寸Overall dimensions(L*W*H) |
732*778*1259mm |
|
加輔助工作臺 lncluding front and back roller worktable |
3282*778*1259mm |
|
重量Weight |
340kg |
|
出塵口管路直徑Dia.of dust vent |
Φ100mm |
