技術參數Technical parmeters
|

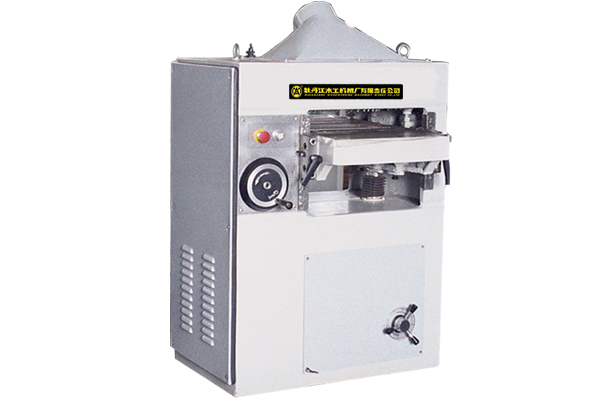

MB104B
|
|
最大刨削寬度 Max.width of planing workpieces
|
400mm
|
|
最大刨削厚度Max.thickness of planing workpieces
|
180mm
|
|
最小刨削厚度Min.thickness of planing workpieces
|
8mm
|
|
最小刨削長度Max.thickness planing workpieces
|
210mm
|
|
每次最大刨削量 Max.Capacity of planing once wor kpiece
|
4mm
|
|
送料速度Feed speed
|
6m/min
|
|
最大毛料厚度差（同時送料）Max.difference of thickness between wood pieces
|
1mm
|
|
刀軸切削直徑Cutting diameter of cutter
|
Φ76.6mm
|
|
刀軸轉速Revolution speed of top &bottom cutters
|
5400r/min
|
|
刀軸切削速度Cutting speed of cutter
|
|
|
工作臺升降速度Lifting speed of work table
|
|
|
電動機功率Power of motors
|
3kw
|
|
主軸電機Motor of main spindle
|
|
|
送料電機For feed unit
|
|
|
升降電機Fox lifting mechanism of feed unit
|
|
|
機床外形尺寸（長*寬*高）Overalldimensions(L*W*H)
|
741*688*1074mm
|
|
重量Weight
|
350kg
|
